Standard Converters#

Note

This page has been migrated from the old documentation, and has not yet been fully revised. There might be inconsistencies or errors when using with current LinkAhead versions.

These are the standard converters that exist in a default installation. For writing and applying custom converters, see their documentation.

Directory Converter#

The Directory Converter creates StructureElements for each File and Directory inside the current Directory. You can match a regular expression against the directory name using the ‘match’ key.

With the optional match_newer_than_file key, a path to a file containing only an ISO-formatted datetime string can be specified. If this is done, a directory will only match if it contains at least one file or directory that has been modified since that datetime. If the file doesn’t exist or contains an invalid string, the directory will be matched regardless of the modification times.

Simple File Converter#

The Simple File Converter does not create any children and is usually used if a file shall be used as it is and be inserted and referenced by other entities.

Markdown File Converter#

Reads a YAML header from Markdown files (if such a header exists) and creates children elements according to the structure of the header.

DictElement Converter#

DictElement → StructureElement

Creates a child StructureElement for each key in the dictionary. The following StructureElement types are typically created by the DictElement converter:

BooleanElement
FloatElement
TextElement
IntegerElement
ListElement
DictElement

Note that you may use TextElement for anything that exists in a text format that can be interpreted by the server, such as date and datetime strings in ISO-8601 format.

match_properties#

match_properties is a dictionary of key-regexps and value-regexp pairs and can be used to match direct properties of a DictElement. Each key matches a property name and the corresponding value matches its property value.

Example: ……..

{
  "@type": "PropertyValue",
  "additionalType": "str",
  "propertyID": "testextra",
  "value": "hi"
}

When applied to a dict loaded from the above json, a DictElementConverter with the following definition:

Example:
  type: DictElement
  match_properties:
    additionalType: (?P<addt>.*)$
    property(.*): (?P<propid>.*)$

will match and create two variables:

addt = "str"
propid = "testextra"

Scalar Value Converters#

BooleanElementConverter, FloatElementConverter, TextElementConverter, and IntegerElementConverter behave very similarly.

These converters expect match_name and match_value in their definition which allow to match the key and the value, respectively.

Note that there are defaults for accepting other types. For example, FloatElementConverter also accepts IntegerElements. The default behavior can be adjusted with the fields accept_text, accept_int, accept_float, and accept_bool.

The following denotes what kind of StructureElements are accepted by default (they are defined in src/caoscrawler/converters.py):

BooleanElementConverter: bool, int
FloatElementConverter: int, float
TextElementConverter: text, bool, int, float
IntegerElementConverter: int
ListElementConverter: list
DictElementConverter: dict

YAMLFileConverter#

A specialized converter for yaml files: Yaml files are opened and the contents are converted into dictionaries, which then can be further converted using the typical subtree converters of DictElementConverter.

TableConverter#

Table → DictElement

A generic converter (abstract) for files containing tables. Currently, there are two specialized implementations for XLSX files and CSV files.

All table converters generate a subtree of dicts, which in turn can be converted with DictElementConverters: For each row in the table the TableConverter generates a DictElement (structure element). The key of the element is the row number. The value of the element is a dict containing the mapping of column names to values of the respective cell.

Example:

subtree:
  TABLE:  # Any name for the table as a whole
    type: CSVTableConverter
    match: ^test_table.csv$
    records:
      (...)  # Records edited for the whole table file
    subtree:
      ROW:  # Any name for a data row in the table
        type: DictElement
        match_name: .*
        match_value: .*
        records:
          (...)  # Records edited for each row
        subtree:
          COLUMN:  # Any name for a specific type of column in the table
            type: FloatElement
            match_name: measurement  # Name of the column in the table file
            match_value: (?P<column_value).*)
            records:
              (...)  # Records edited for each cell

XLSXTableConverter#

XLSX File → DictElement

The converter definition in the CFood can include options matching the parameters of pandas.read_excel. These include sheet_name, header, names, index_col, usecols, true_values, false_values, na_values, parse_dates, skiprows, nrows, and keep_default_na.

Example:

subtree:
  TABLE:  # Any name for the table as a whole
    type: XLSXTableConverter
    match: ^test_table.xlsx$
    header: 3
    skip_rows: 2

In addition, the class can be used for validation and error handling. In order to do so, you must provide the desired datatypes for columns in the converters section. For example, the following will convert the values in the author column to string, and the values from the publications column to integer, raising an exception if this is not possible:

subtree:
  TABLE:  # Any name for the table as a whole
    type: XLSXTableConverter
    match: ^test_table.xlsx$
    converters:
       "author": "str"
       "publications": "int"

The supported datatypes for conversion are: int, float, str, date, time, datetime, and bool. Apart from converters, you can specify columns which must have valid values for each row in obligatory_columns, columns which must exist but may have missing values in existing_columns, and lists of column names which in combination uniquely identify each row in unique_keys.

CSVTableConverter#

CSV File → DictElement

PropertiesFromDictConverter#

The PropertiesFromDictConverter is a specialization of the DictElementConverter and offers all its functionality. It is meant to operate on dictionaries (e.g., from reading in a json or a table file), the keys of which correspond to properties in a LinkAhead datamodel. This is especially useful in cases where properties may be added to the data model and data sources that are not yet known when writing the CFood definition.

The definition of the PropertiesFromDictConverter has an additional required entry record_from_dict which specifies the Record to which the properties extracted from the dict will be attached to. This Record is identified by its variable_name, by which it can then also be referred to further down the subtree. You can also use the name of a Record that was specified earlier in the CFood definition in order to extend it by the properties extracted from a dict. Let’s have a look at a simple example. The CFood definition:

PropertiesFromDictElement:
    type: PropertiesFromDictElement
    match: ".*"
    record_from_dict:
        variable_name: MyRec
        parents:
        - MyType1
        - MyType2

applied to a dictionary

{
  "name": "New name",
  "a": 5,
  "b": ["a", "b", "c"],
  "author": {
    "full_name": "Silvia Scientist"
  }
}

will create a Record New name with parents MyType1 and MyType2. It has a scalar property a with value 5, a list property b with values “a”, “b” and “c”, and an author property which references an author with a full_name property with the value “Silvia Scientist”:

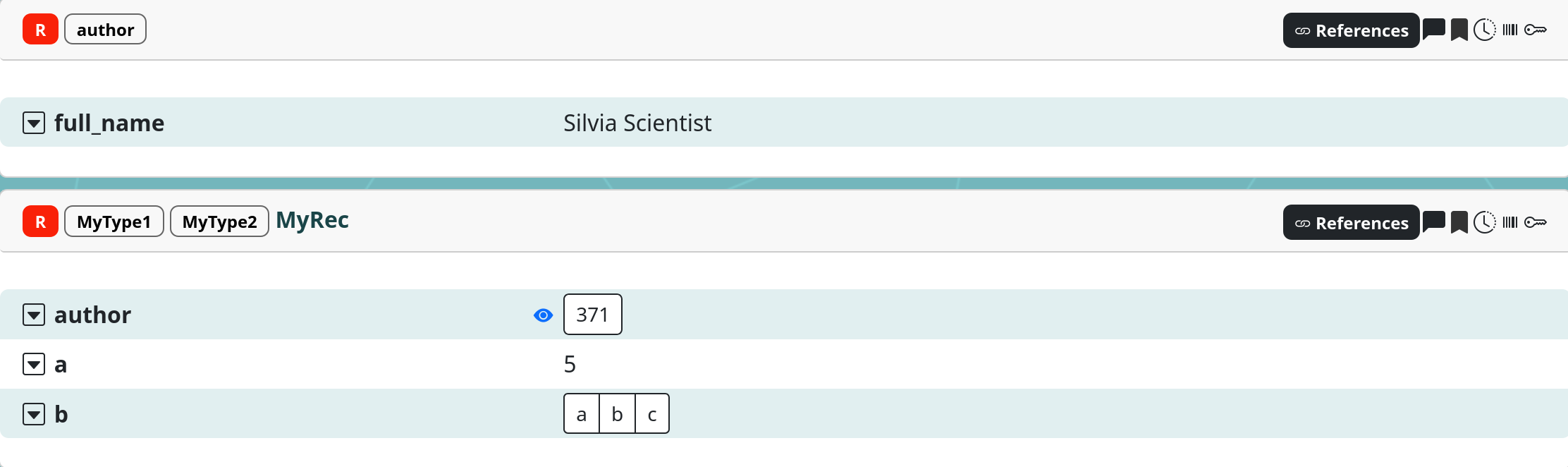

A Record "New Name" and an author Record with full_name "Silvia Scientist" are generated and filled automatically.

Note how the different dictionary keys are handled differently depending on their types: scalar and list values are understood automatically, and a dictionary-valued entry like author is translated into a reference to an author Record automatically.

You can further specify how references are treated with an optional references key in record_from_dict. Let’s assume that in the above example, we have an author Property with datatype Person in our data model. We could add this information by extending the above example definition by:

PropertiesFromDictElement:
    type: PropertiesFromDictElement
    match: ".*"
    record_from_dict:
        variable_name: MyRec
        parents:
        - MyType1
        - MyType2
        references:
            author:
                parents:
                - Person

so that now, the Person Record with full_name “Silvia Scientist” is created as the value of the author property:

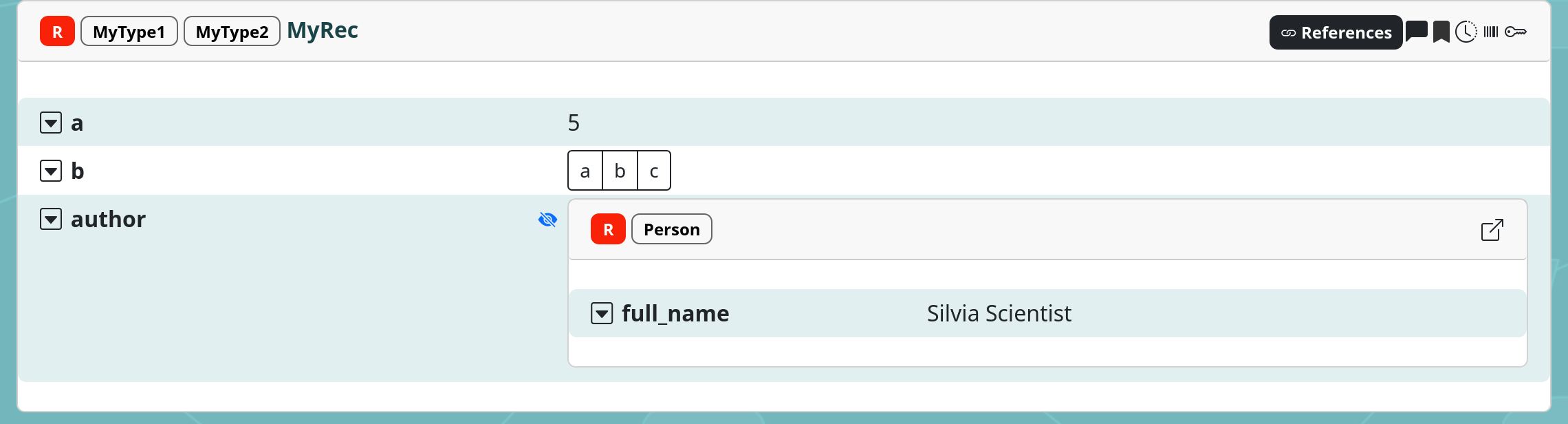

A new Person Record is created which is referenced as an author.

For the time being, only the parents of the referenced Record can be set via this option. More complicated treatments can be implemented via the referenced_record_callback (see below).

All keys listed under properties_blacklist will be excluded from automated treatment, which means it can be used to exclude properties from being automatically created. Since the PropertiesFromDictConverter has all the functionality of the DictElementConverter, individual properties can still be used in a subtree. Together with properties_blacklist, this can be used to add custom treatment to specific properties by blacklisting them in record_from_dict and then treating them in the subtree the same as you would do it in the standard DictElementConverter. Note that the excluded keys are excluded on all levels of the dictionary, which means this applies also when they occur in a referenced entity.

For further customization, the PropertiesFromDictConverter can be used as a basis for custom converters, which can use its referenced_record_callback argument to add custom handling of references. The referenced_record_callback can be a callable object which takes exactly a Record as an argument and needs to return that Record after applying its treatment. Additionally, it is given the RecordStore and the ValueStore in order to be able to access the records and values that have already been defined from within referenced_record_callback. This might look like the following:

def my_callback(rec: db.Record, records: RecordStore, values: GeneralStore):
    # do something with rec, possibly using other records or values from the stores...
    rec.description = "This was updated in a callback"
    return rec

This function is applied to all Records that are created from the dictionary. This means it can be used to, for example, transform values of some properties, or add special treatment to all Records of a specific type. referenced_record_callback is applied after the properties from the dictionary have been applied as explained above.

XML Converters#

There are the following converters for XML content:

XMLFileConverter#

This is a converter that loads an XML file and creates an XMLElement containing the root element of the XML tree. It can be matched in the subtree using the XMLTagConverter.

XMLTagConverter#

The XMLTagConverter is a generic converter for XMLElements with the following main features:

It allows to match a combination of tag name, attribute names and text contents using the keys:
- match_tag: regular expression, default empty string
- match_attrib: dictionary of key and value pairs, both containing regular expressions. Each key matches an attribute name and the corresponding value matches its attribute value.
- match_text: regular expression, default empty string
It allows to traverse the tree using XPath (using Python lxml’s xpath functions):
- The key xpath is used to set the xpath expression and has a default of child::*. Its default would generate just the list of sub nodes of the current node. The result of the xpath expression is used to generate structure elements as children. It them uses the keys tags_as_children, attribs_as_children and text_as_children to determine which information from the found nodes will be used as children:
  - tags_as_children: (default true) For each xml tag element found by the xpath expression, generate one XMLTag structure element. Its name is the full path to the tag using the function getelementpath from lxml.
  - attribs_as_children: (default false) For each xml tag element found by the xpath expression, generate one XMLAttributeNode structure element for each of its attributes. The attribute node’s name has the form: <full path of the tag>@<name of the attribute>.
  - text_as_children: (default false) For each xml tag element found by the xpath expression, generate one XMLTextNode structure element containing the text content of the tag element. Note that in case of multiple text elements, only the first one is added. The name of the respective attribute node has the form: <full path of the tag> /text() to the tag using the function getelementpath from lxml.

Note

Currently, there is no converter implemented that can match XMLAttributeNodes.

Namespaces#

The default is to use the namespace map from the current node in xpath queries. Because default namespaces cannot be handled by xpath, it is possible to remap the default namespace using the key default_namespace. The key nsmap can be used to define additional nsmap entries.

ZipFileConverter#

This converter opens zip files, unzips them into a temporary directory and exposes the contents as File structure elements.

Usage Example:#

ExampleZipFile:
  type: ZipFile
  match: example\.zip$
  subtree:
    DirInsideZip:
      type: Directory
      match: experiments$
    FileInsideZip:
      type: File
      match: description.odt$

This converter will match and open files called example.zip. If the file contains a directory called experiments or a file called description.odt, they will be processed further by the respective converter in the subtree.
